About Produces highly pure,
perfectly spherical
silicon-based fillers

Our high-purity, non-porous, and perfectly spherical fillers–including silica, silica-titania composite oxide, and silicone fine particles–offer excellent dispersibility and are available in a variety of particle sizes.

These fillers have been used as functional additives for high-performance applications, including advanced underfill materials for semiconductor encapsulation, liquid resins, precision adhesives, high-performance films, and ceramic precursors. They help optimize properties such as electrical insulation, thermal expansion, mechanical strength, elasticity, moisture permeability, and refractive index–making them ideal for advanced material design.

Type

Products Overview

Silica

SILFIL™

Features
Manufactured using Tokuyama’s proprietary combustion synthesis, SILFIL™ features a relatively sharp particle size distribution and minimal formation of coarse particles-characteristics that set it apart from typical dry-process silica.

SANSIL™

Features
Manufactured using a wet process (sol-gel method), SANSIL™ features a very sharp particle size distribution and minimizes the formation of coarse particles.

EXCELICA™

Features
Manufactured using a dry process (fusion method), EXCELICA™ offers superior purity with fewer impurities than typical fused silica, thanks to the use of ultra-pure raw materials.
Application Examples
Semiconductor encapsulants, Precision adhesives, Sealants, Ceramics, Films, Coatings, etc.

Silica-Titania composite oxide

SANSIL™ FA

Features
Manufactured using Tokuyama’s proprietary wet process (sol-gel method), SANSIL™ FA is a composite oxide of silica and titania with controllable refractive index properties. By matching the refractive index of the resin, SANSIL™ FA helps maintain high transmission characteristics even when used as a filler.
Application Examples
Transparent adhesives, Sealants, Encapsulants, Films, Coatings, etc.

Silicone fine particles

SANSIL™ MP-01

Features
Manufactured using Tokuyama’s proprietary wet process (sol-gel method), SANSIL™ MP-01 consists of approximately 100 nm spherical polymethylsilsesquioxane particles, produced with our proprietary technology. It offers superior heat resistance compared to organic particles and is softer than inorganic particles such as silica.
Application Examples
Toners, Rubbers, Films, Paints, Coatings, etc.
左右にスワイプしてご覧ください 左右にスワイプしてご覧ください
CAS No. japan ENCS (JAPAN) usa TSCA (USA)
SILFIL NSS- 7631-86-9 (1)-548 Existing Chemical Substance
NHM- 68909-20-6 (1)-548 Existing Chemical Substance
SANSIL SS- 7631-86-9 (1)-548 Existing Chemical Substance
SP-M 68909-20-6 (1)-548 Existing Chemical Substance
SP-P Silica:7631-86-9 (1)-548 Existing Chemical Substance
Agent:2996-92-1 (3)-2635 Existing Chemical Substance
EXCELICA SE- / UF- 60676-86-0 (1)-548 Existing Chemical Substance
SANSIL
(Silica-Titania composite oxide)
FA Silica:7631-86-9 Titania:13463-67-7 Silica:(1)-548 Titania:(1)-558 New Chemical Substance
SANSIL
(Silicon fine particles)
MP-01 68554-70-1 (7)-476 Existing Chemical Substance

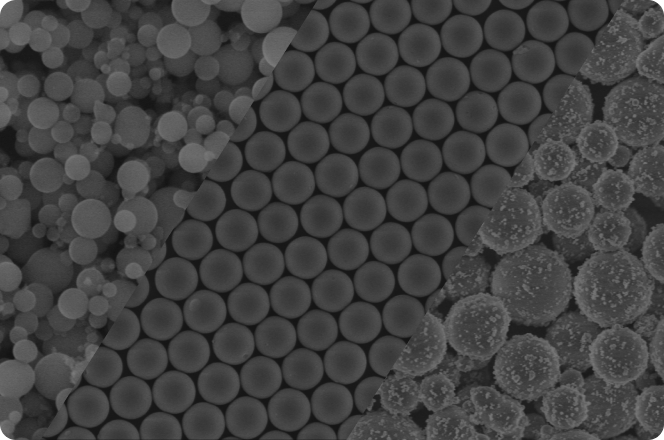

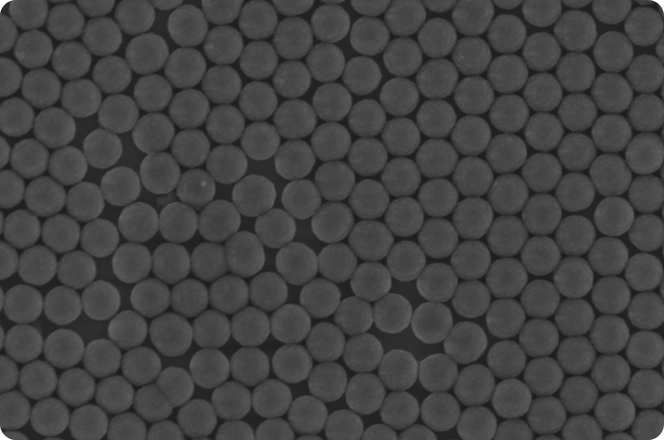

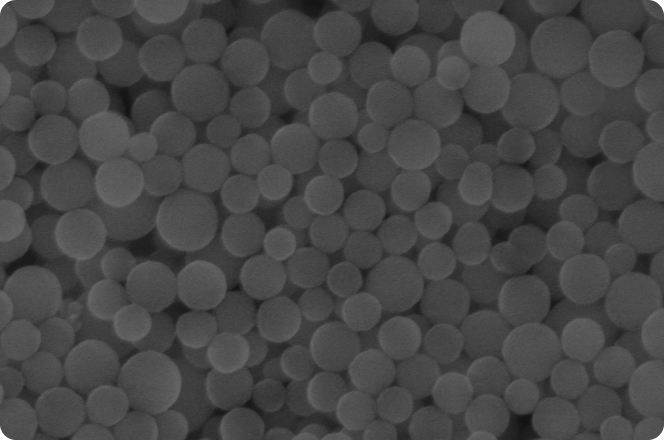

* The values ​​and images are examples based on our tests and do not guarantee quality.
