Silica-Titania composite oxide "SANSIL™FA"

SANSIL™ FA is a silica-titania composite oxide, which can control its refractive index.
By adjusting the ratio between silica and titania, the refractive index of SANSIL™ FA can be controlled from 1.46 to 1.60.
Produced by sol-gel method, SANSIL™ FA is spherical particle with narrow size distribution and its paticle size can be controlled from 0.3 to 0.7 μm.

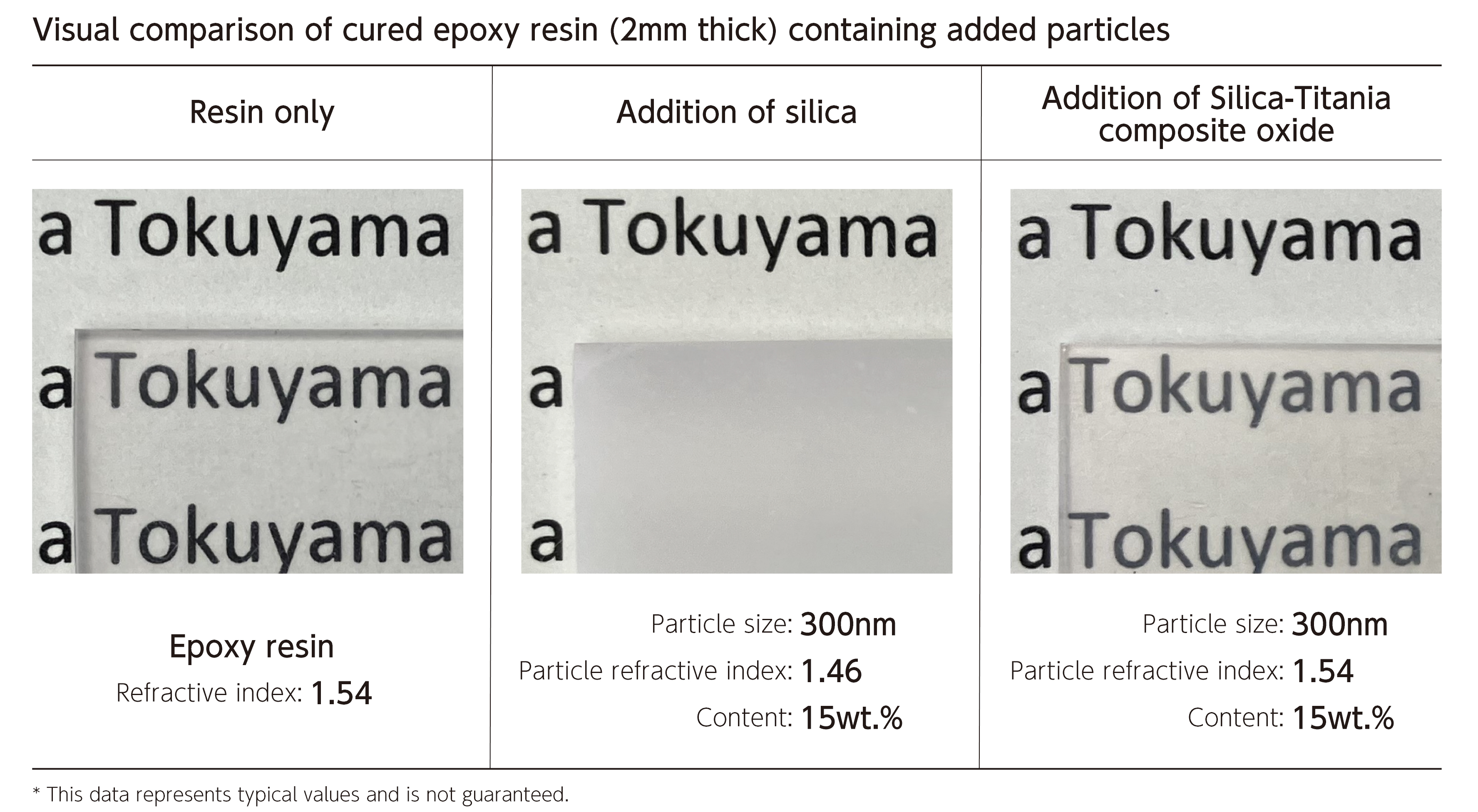

Effect of refractive index-matching(epoxy resin)

Effect of refractive index-matching(epoxy resin)Adding SANSIL™ FA having the same refractive as regin, resin can be improved mechanical strength and get anti-blocking, while maintaining its transparency.

Features

  • Spherical particles
  • Extremely sharp particle size distribution
  • Tunable refractive index
  • High purity

Applications

  • Adhesives
  • Sealants
  • Films
  • Coating materials

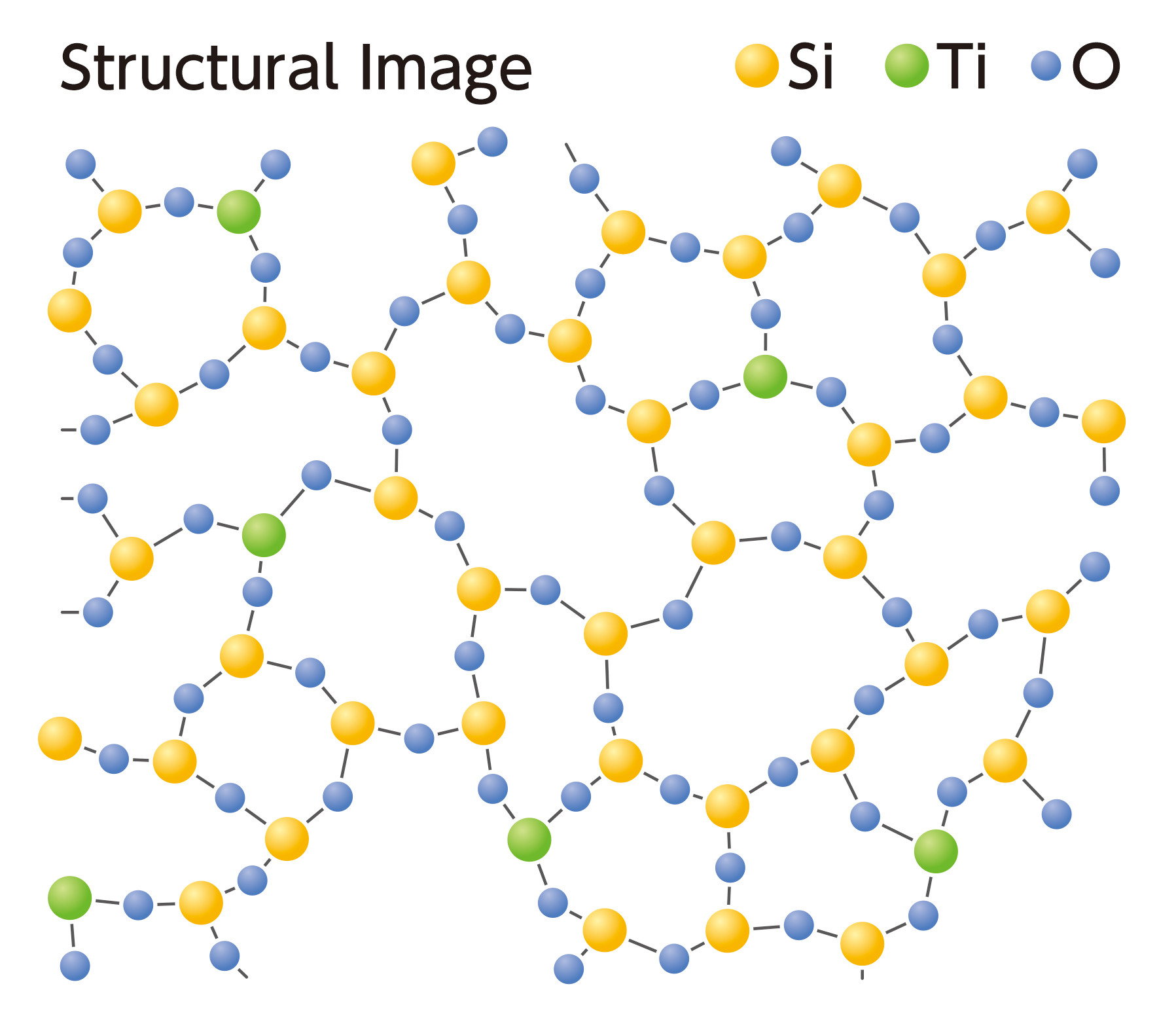

Structural Image

Structural Formula Image

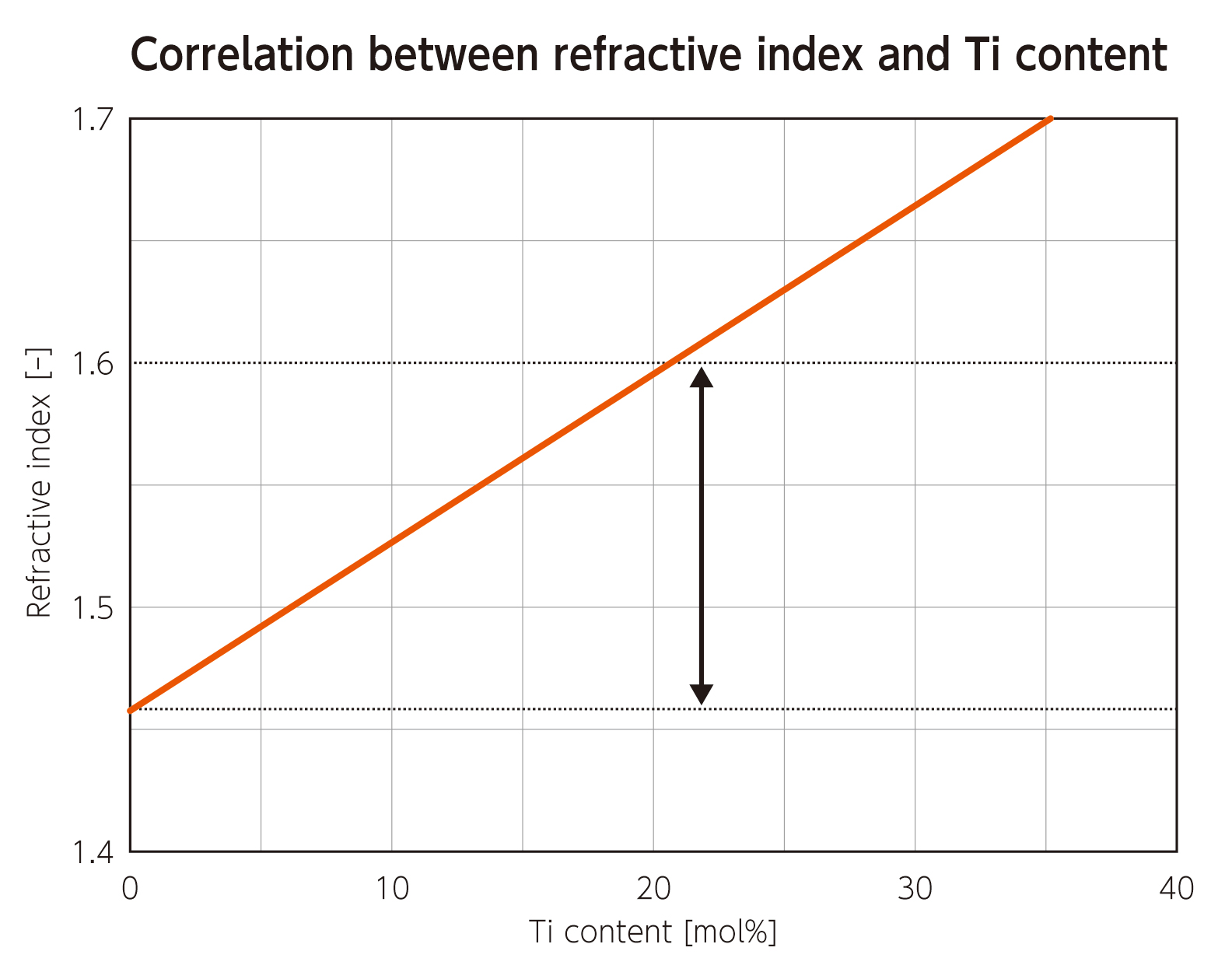

Correlation between refractive index and Ti content

Correlation between refractive index and Ti content
